Evoquip
Falcon 1220
Inclined Screen
Versatile Screen
Compact Design for ease of transportation
High Output Potential
up to
275 tph / 303 US tph
Backed with OPS's Aftermarket Services and support

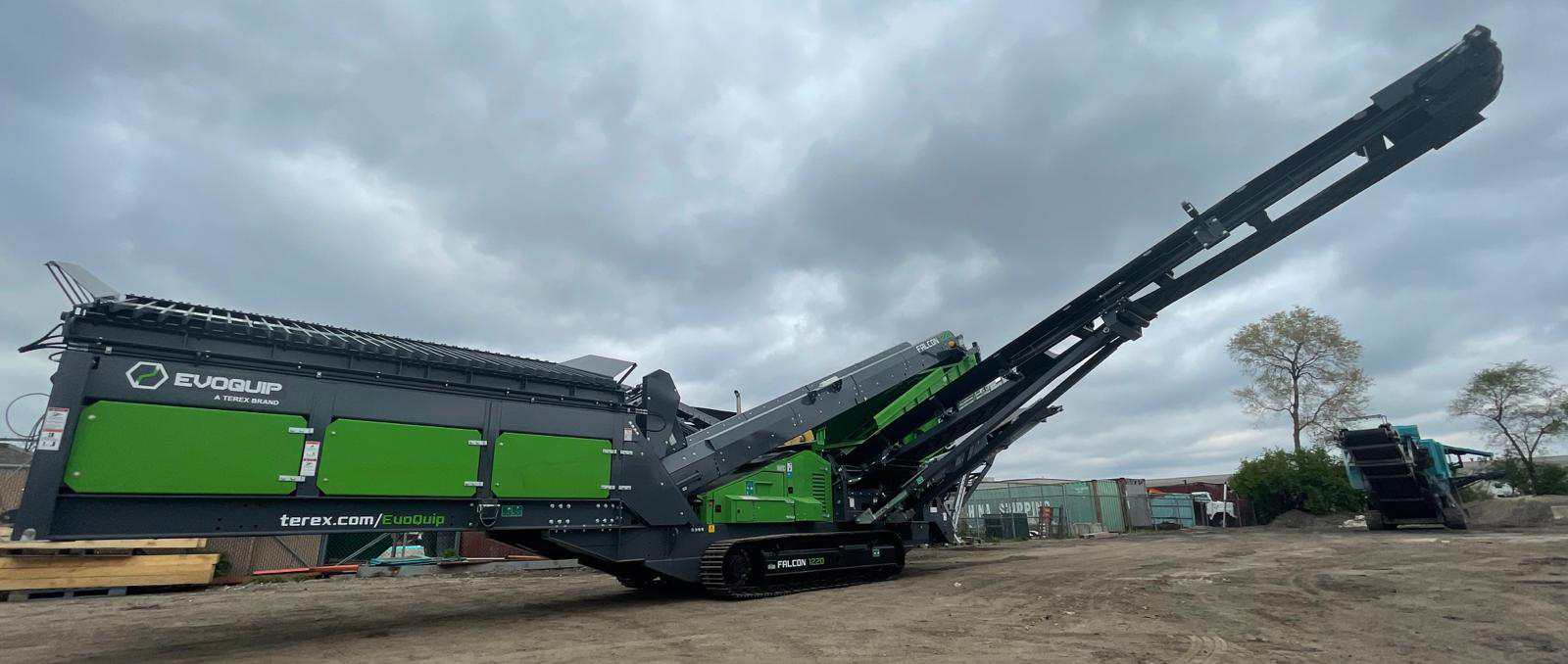

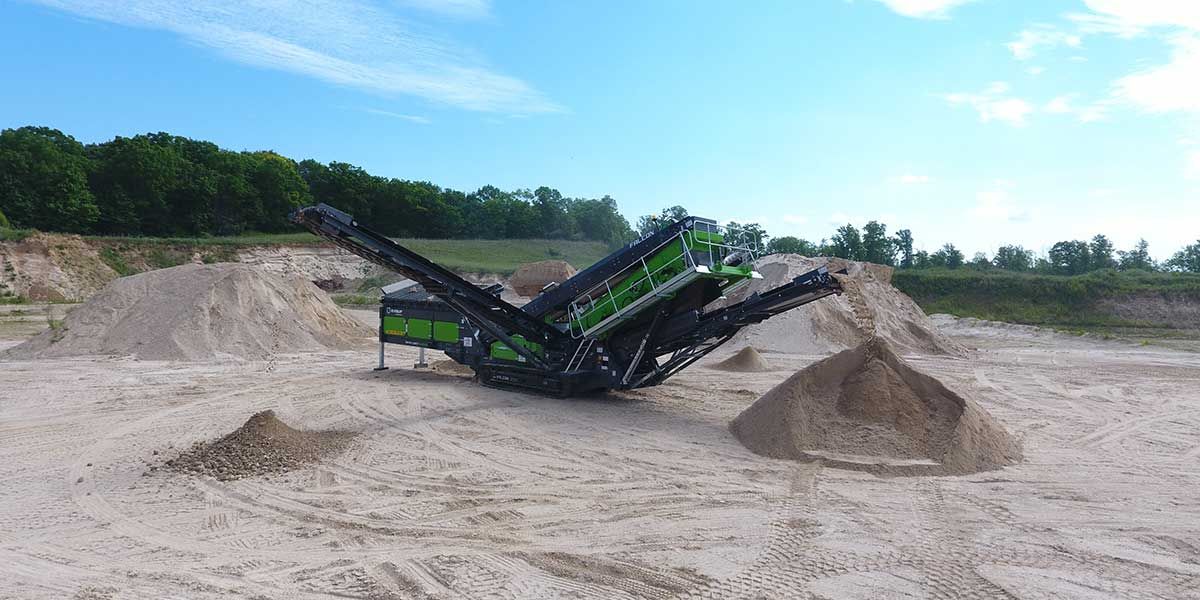

The Falcon 1220 mobile inclined screener combines scalping, screening and stockpiling into one self contained unit. Its rugged design enables it to handle materials such as sand and gravel, crushed stone, coal, topsoil and demolition waste.
Technical Specifications
HOPPER / FEEDER
8m 3 (10.5yd 3 ) hopper capacity
4.2m (14ft) long hopper and belt feeder
1050mm (42”) wide feeder belt
SCREEN
Versatile and configurable 3 deck screen
3.66m x 1.52m (12’ x 5’) top & middle deck screen
3.00m x 1.52m (10’ x 5’) bottom deck screen
Total screening area: 15.7m² (170ft²) 3 deck
screen speed: 1120rpm max
CONVEYERS
11m (40”) wide main conveyor
1.2m (48”) wide fines conveyor with standard discharge height of 3.86m
(12’ 8”)
650mm (26”) wide mid-grade conveyor with max 4.86m (15’ 11”) discharge height
650mm (26”) wide over-size conveyor with max 4.86m (15’ 11”) discharge height
TIPPING GRID
4.25m (14ft) long tipping grid as standard
Feed in width 4.77m (15’ 8”)
TRANSPORT DIMENSIONS
Height 3.25m | Width 2.55m | Length 15.2m | 24,500kg
