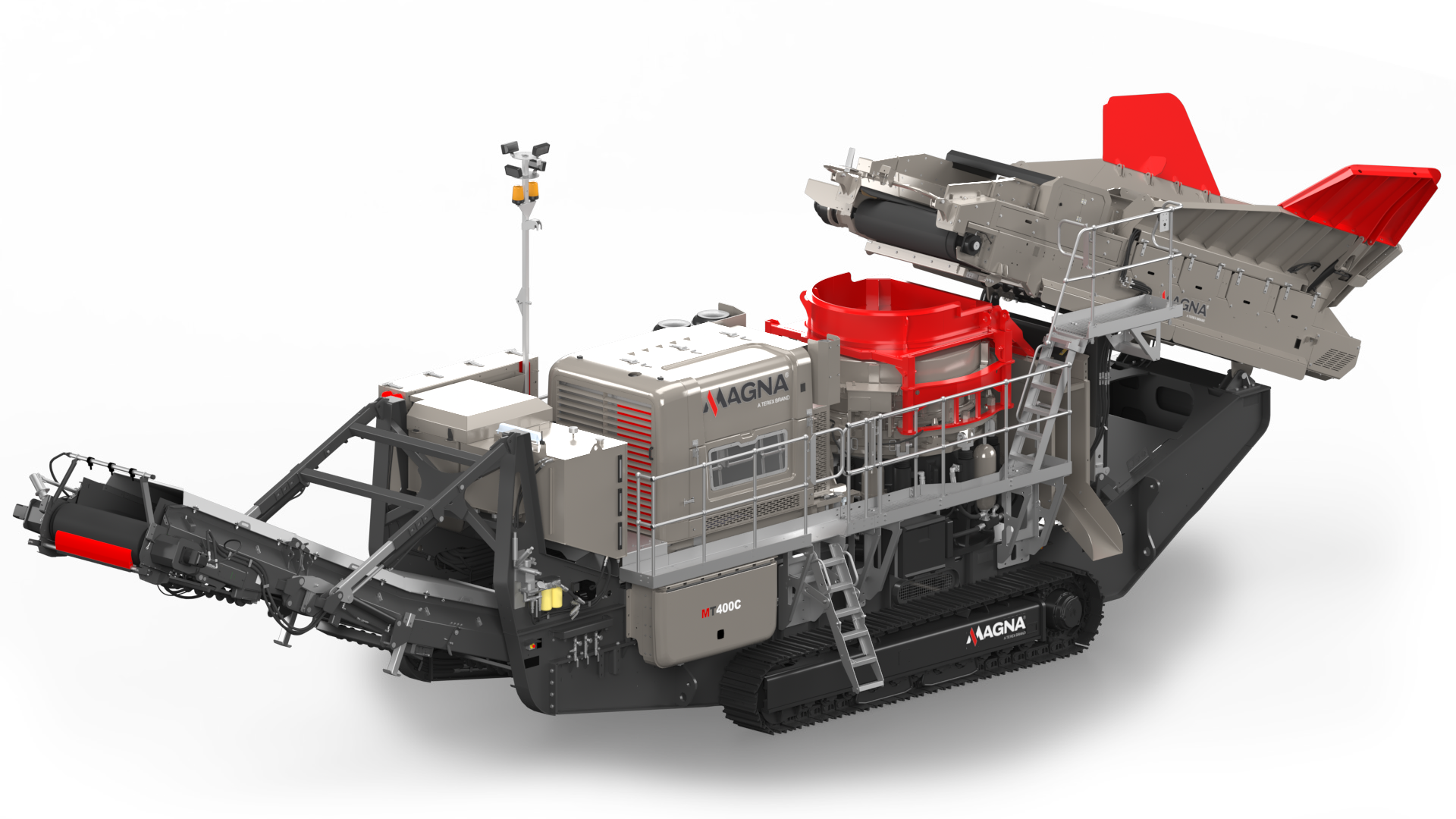

TECHNICAL SPECIFICATIONS

FEATURES & BENEFITS

High capacity output potential

Excellent product shape

High reduction ratio

Cone feed box level control to maintain choke feeding

Hydraulic crusher setting

Cone overload protection with automatic reset

Multiple(5) liner configurations to suit a broad range of mining and aggregate applications

Metal detector and purge system with auto-stop

Dust suppression system

Economical to operate with a highly fuel efficient direct drive system through a ‘wet clutch’

Heavy duty fabricated chassis & track frame

Remote control via umbilical

Radio remote control as standard

MAGNA telemetry as standard

CONE CHAMBER

Crusher type: MVP450x (1380mm (54”) Cone Chamber)

Liner configuration: Coarse - Medium as standard

Counter shaft speed range: 661 - 861rpl (56T pulley) Standard speed range: 755 - 933 rpm (64T pulley) Application specific option

Lubrication: Integrated cone oil lubrication tank with separate oil cooler

Adjustment: Hydraulic setting adjustment, automatic Tramp Iron Release (TIR) system with 114mm(4 1/2”) clearance & hydraulic unblocking

Drive: Direct Drive via clutch and belts

Level sensor: Fitted over inlet of feed box maintains optimum choke feed condition and maximising reduction

Dust suppression: Fitted at cone inlet and outlet

Mantle/concave wear indicator

Hydraulic overload protection with automatic reset. This allows the upper frame to lift up, to permit the passage of tramp iron and other un-crushable material. The system then automatically returns the upper frame to its original position

Unrestricted feed opening reduces blockage, bridging and maximizes output for maximum material strength of 345M compressive strength

Anti-Spin’ brake technology

HOPPER / FEEDER

Hopper type: Fixed feed hopper with direct feed rear door

Hopper length: 3.3m (10’10”)

Hopper width: 2.5m (8’2”)/ 4.16m (13’8”) at rear with optional hopper extensions

Feed height: 3.4m (11’2”)/3.8m (12’6”) with optional extension

Hopper capacity: 8m3 (10.4yds3)

Hopper body: Fabricated in 10mm mild steel plate, with combination of 15mm, 10mm & 6mm wear resistant

Design: Raise & lower hydraulically for transport, operation & crusher maintenance

Belt Spec: Plain

Belt Width: 1.2m (48”)

Speed range: Variable: 0 - 43 m/min (0 - 141 ft/min)

Working Angle: 22°

Drive: Hydraulic variable speed drive via gearbox

Drop down rear door for auxiliary crusher feed

Crash bar fitted to reduce impact load on feed conveyor

Rubber covered impact rollers fitted

Hydraulic retraction system for ease of movement between transport and working modes

Full length skirting to head drum

Automatic variable speed conveyor ensures maximum output from plant

Metal detection system with ‘auto-stop’ feature is suitable for detecting steel and manganese steel contained in the feed material

Controllable discharge system to purge metal contaminants.

This feature allows the operator to clear metal from the feed conveyor when it is detected. The contaminated material is dumped to the side of the machine. This can be done on the main control panel or remotely via the optional radio remote.

MAIN CONVEYOR

Belt width: 1.2m (48”)

Belt spec: Plain

Working angle: 26°

Speed: 108-114 m/min (354-374 ft/min)

Discharge Height: 3.55m (11’ 8”)

Twin Drive Head Drum

Impact bars and wear resistant liners at feed point

High spec scraper at head drum

Dust suppression: fitted with hose and spraybars as standard (no pump supplied)

Full length skirting to head drum

Aluminium dust covers

Stockpile capacity: 69.4m3 (90.8yds3) @ 40°

ENGINE

CAT C18 ACERT 571 kW (765hp)
