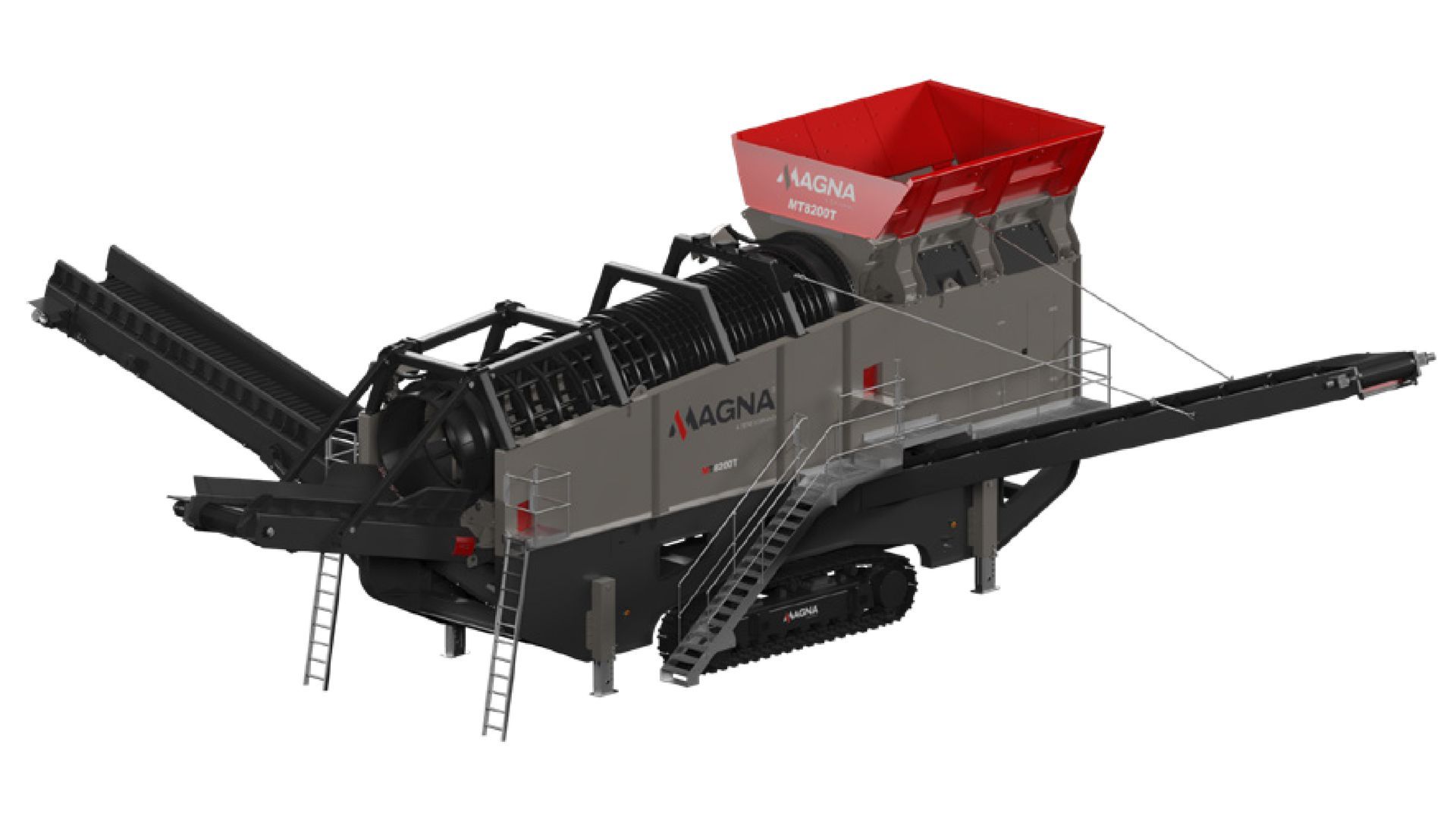

TECHNICAL SPECIFICATIONS

FEATURES & BENEFITS

High capacity up to 800 tph / 881 US tph (depending on media sizes & material type)

Maximum feed size 1000mm (3’ 3’’)

Maximum allowable feed size may vary depending on material type and trommel screen media

Heavy duty wear resistant feed hopper

Quick set-up time

Maximum mobility with heavy duty, low ground pressure crawler tracks

Optional radio control system available if required

Two and three split versions available

High performance hydraulics system

Galvanised maintenance platforms on both sides of machine

MAGNA telemetry as standard

TROMMEL DRUM

Diameter: Internal 2m (6’ 7”)

Length: 8m (26’ 3”)

Incline angle: 5o

Screen apertures: Fines 25mm - 300mm

         Middle grade 100mm - 720mm

HOPPER & FEEDER

Feed hopper capacity: 25m3 (Add flares to increase volume)

Construction: Monocoque steel frame comprising of box section, I beam, steel plate

Feed opening: 4100mm wide x 4875mm long (13’ 5” x 16’)

Feeder: Reciprocating plate feeder fitted directly under feed hopper

Plate width: 1200mm (3’ 11”)

Tray supports: 10 track frame rollers

CONVEYORS

FINES COLLECTION CONVEYOR

1500mm (60”) wide heavy-duty belt

Located underneath drum

Feeds fines stacking conveyor

FINES STACKING CONVEYOR

1050mm (41”) Heavy-duty belt

Feeding to the side of the machine

Output height: 6.56m (21’ 5”)

MID PRODUCT STACKING CONVEYOR

1200mm wide Super duty Apron style steel pan conveyor

Feeding to the side of the machine

Output height: 5.10m (16’ 7”)

OVERSIZE STACKING CONVEYOR

1200mm (47”) wide, 5500mm (216”) long Standard

Apron Feeder

Feeding to the front of the machine

Output height: 4.39m (14’ 5”)

ENGINE

C7.1 Engine
